Brand Name : | DZ |
Model Number : | CNC |
Certification : | CE ISO |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 30sets/per month |
Delivery Time : | 20days |

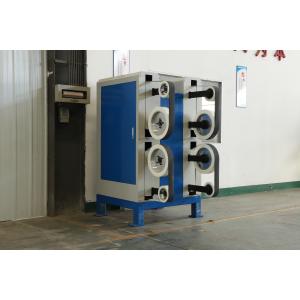

Durable Faucet / Valve Zinc Brass Polishing Machine For Hardware Polishing
Axis CNS Polishing and Buffing Machine Functions
1. The machine equips with 6 NC axes, can finish the polishing and
buffing of 4 work pieces in one time.
2. 4 NC axes polishing and buff simultaneously.
3. Handhold programming demonstrator.
4. Able to over programming.
5. Full auto, waxing system.
Features:
1. Four working stations work simultaneously, and with one time
programming, the machine can finish the polishing and buffing jobs
of four workpieces in one time
2. The machine has 6 free degree, to achieve all dimensions curved
surface working
Fast fixtures changing structure Fully Automatic Waxing System
Finish the polishing/buffing jobs in any angle and position
Main technical parameters:
# | Item | Parameter | Remarks |
1 | Size | 4400*3400*2900(L×W×H) | Machine Cabinet Size |
2 | Power | 33KW | |
3 | Rated Voltage | 380V 50Hz | |
4 | Max. Polishing Mop Diameter | 600mm | |
5 | Min. Polishing Mop Diameter | 400mm | |
6 | X Axis Travel | 1100 | |
7 | Y Axis Travel | 900 | |
8 | Z Axis Travel | 700 | |
9 | U Axis Travel | ±60° | |
10 | V Axis Travel | ±360° | |
11 | W Axis Travel | ±360° |
![]() |
